MySQL TCP Connection

Overview

Normal communication to MySQL server has two phases:

• Connection phase where capabilities and authentication data are exchanged
• Query phase accepts commands from the client and executes them

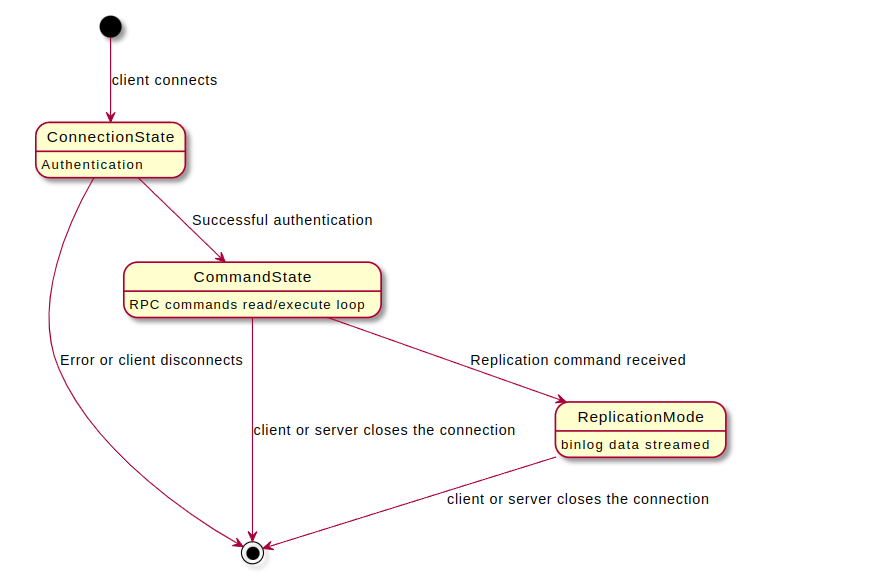

When a connection is established the server initiates a Connection Phase. Then it enters the Command Phase. The Command Phase ends when the connection terminates.

(We can ignore the ReplicationMode here)

MySQL Packets

If a MySQL client or server wants to send data, it:

• Splits the data into packets of size $2^{24}$ bytes
• Prepends to each chunk a packet header

Therefore, every payload must start with 4 bytes, 3 bytes length and 1 byte sequence_id (usually 0x00)

Connection Phase

At this phase, the client and server will exchange the capabilities of each other (the server sends information that contains the protocol version, database version,...). The client also provide credential to authenticate in this phase. If successful, the server will respond OK_PACKET.

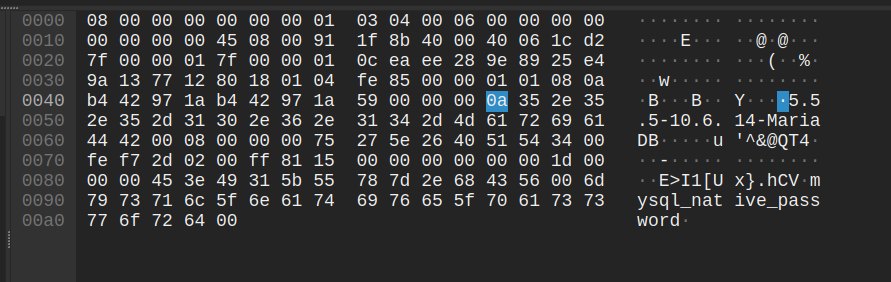

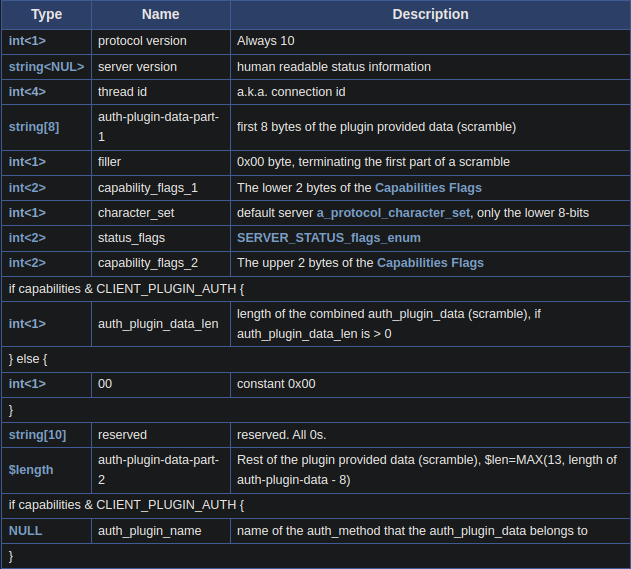

When connected, server will send Protocol::Handshakeopen in new window (Initial Handshake), since 3.21.0, server will use protocol version 10. This packet contains server information and auth_plugin_name which is usually mysql_native_password

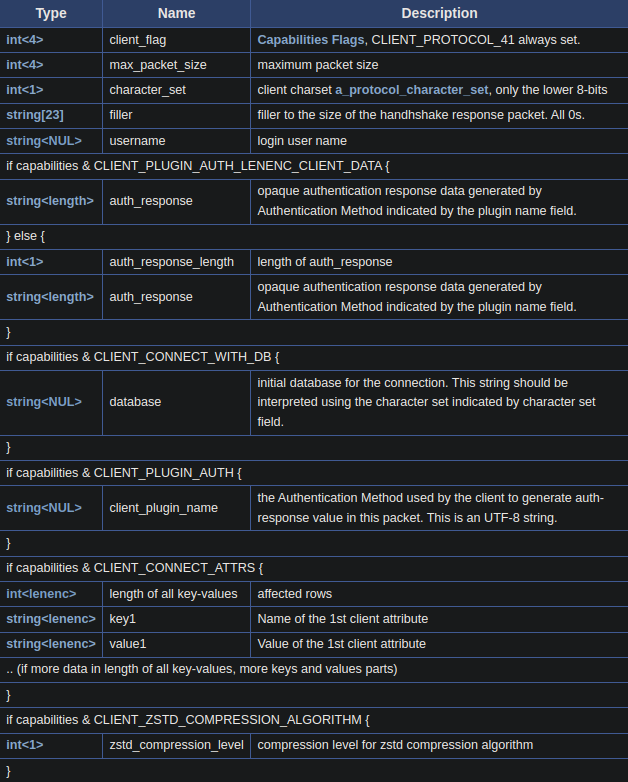

After receiving the Server Initial Handshake Packet, the client will respond Protocol::HandshakeResponse41open in new window with credentials for authenticating, here I use Plain Handshake so the SSL Connection can be skipped.

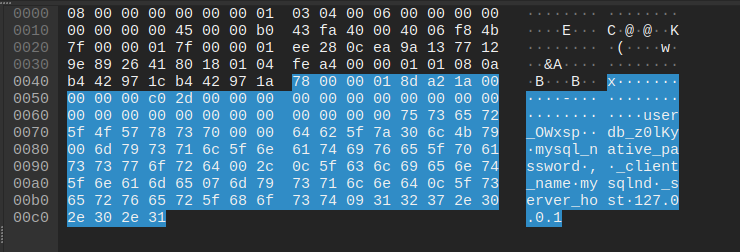

Here the payload when I tried to connect MySQL with username user_OWxsp, database db_z0lKy and no password.

• First 4 bytes 78 00 00 00 01: Payload length and sequence id (sequence_id = 0 is Server Inital Handshake)
• 4 bytes 8d a2 1a 00: Capabilities Flagsopen in new window, hex value is 0x001aa28d, it can be converted to 32 bits 0000 0000 0001 1010 1010 0010 1000 1101 to check which flag is enable.
• 4 bytes 00 00 00 c0: Max packet size, which is 192

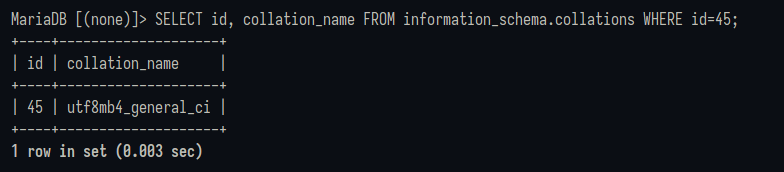

• 1 byte 2d: Character set, 0x2d = 45 (which corresponds to utf8mb4_general_ci)
• 23 bytes 00 00 .. 00 00: Just a filler with 23 bytes 0x00
• 11 bytes 75 73 65 72 5f 4f 57 78 73 70 00: Username and nullbyte for terminating
• 1 byte 00 (CLIENT_PLUGIN_AUTH_LENENC_CLIENT_DATA): Auth response (no auth response)
• 9 bytes 64 62 5f 7a 30 6c 4b 79 00 (CLIENT_CONNECT_WITH_DB): Database name and nullbyte
• 22 bytes 6d 79 .. 72 64 00 (CLIENT_PLUGIN_AUTH): The authentication method and nullbyte, I use mysql_native_password
• 46 bytes 2c 0c .. 2e 31:
  • 1 byte 2c: Length of all attributes
  • 13 bytes 0c 5f 63 6c 69 65 6e 74 5f 6e 61 6d 65: 1 byte length and key (_client_name)
  • 8 bytes 07 6d 79 73 71 6c 6e 64: 1 byte length and value (mysqlnd) ...

In summary, in the Connection phase:

1. Client connect to Server
2. Server send Protocol::Handshake
3. Client responds with Protocol::HandshakeResponse
4. Client and server possibly exchange further packets as required by the server authentication method for the user account the client is trying to authenticate against.
5. Server responds with OK_PACKET if successful

Command Phase

Our query statement will be here. The commands can be one of 4 sub-protocols:

• Text Protocol
• Utility Commands: connection close, ping, debug,...
• Prepared Statements: for prepare statement
• and Stored Programs.

I will focus on the Text Protocol because it's used to send SQL queries easily.

Text Protocol

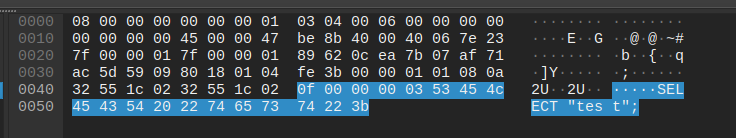

Example with easy query SELECT "test";

• First 4 bytes 0f 00 00 00: Payload length and sequence id

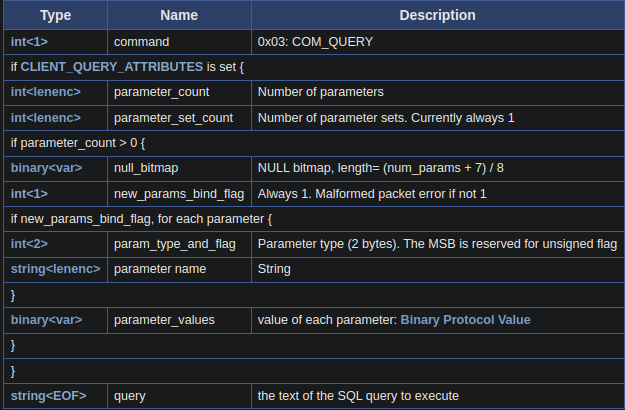

• 1 byte 03: Always 03 in COM_QUERY, Text Protocol
• Final 14 bytes: My query, which is SELECT "test";

If it were sent successfully, the Server would respond with a packet return value of the query.

Prepare Statement

Another way to send SQL queries is using Prepare Statement, but it's more complex than Text Protocol. Firstly, we need to send COM_STMT_PREPARE and then wait for the server to respond. We need to decode that response to get statement_id. Finally, we will COM_STMT_EXECUTE with statement_id from the previous.

Quit

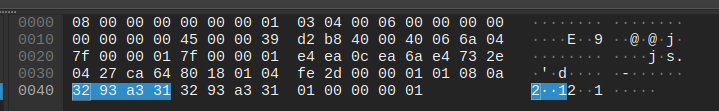

After done, we can send COM_QUIT (Utility Commands) whose payload contains only 1 byte 01

The idea came from a CTF challenge in which I had to craft a TCP payload to query the MySQL database to the flag. I solved this by using the tcpdump command to get raw payload requests to MySQL, I want to know how the payload is generated, so I am writing this blog. My script (gopherus use python2...): Githubopen in new window

• https://dev.mysql.com/doc/dev/mysql-serveropen in new window
